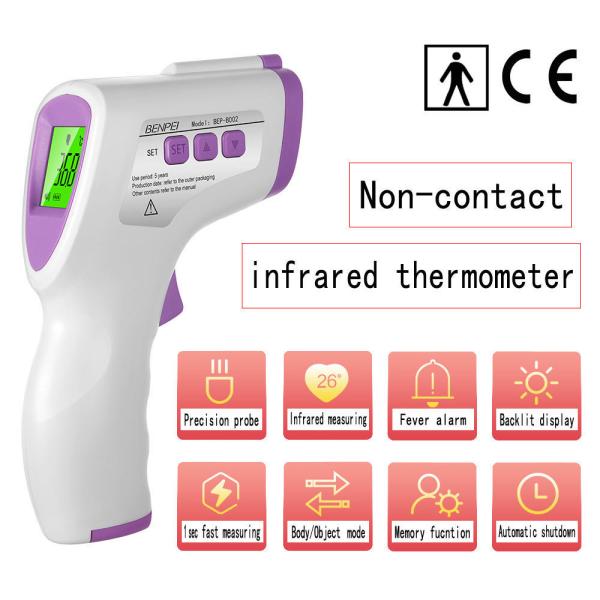

White Color No Touch Baby Thermometer 99.9% Accuracy Quick Response
Product description
● Ergonomic design, simple and elegant appearance
● Non-contact accurate measurement, clean and sanitary
● Good adaptability to environmental changes, can be used in complex environments
● One-Key switch body temperature / object temperature, convenient and practical
● 32 sets of memory storage, one-click query, simple and practical
● The temperature unit can be adjusted to facilitate different user habits
● Automatic shutdown without operation within 10s
Pay attention during use
1. When measuring body temperature, the ambient temperature is preferably between 10 ℃ -40 ℃, lower or higher may affect theaccuracy of the measurement.
2. A cold compress on the forehead of a fever patient, sweating and other cooling measures will make the measurement result lower, and measurement should be avoided in this case.
3. The environment around the person to be measured should be stable, and can not be measured in the air flow circle such as the fan, air outlet of the air conditioner.
4. Do not use the instrument outdoors or in a place with strong sunlight.
5. It is recommended to measure about 3 times each time, which is based on the most displayed data.
|
|
|
DC 3V, AAA battery*2 (1.5V*2)
|
|
| Measuring range |
32.0℃-42.9℃ (89.6℉-109.2℉)in body temperature mode |
| Measurement accuracy |
35.0℃-42.0℃:±0.2℃ |
| Tri-color backlight |
32.0℃~37.4℃:Green 37.5℃~38.4℃:Yellow
38.5℃~42.9℃:Red
|
Technical Parameters
| Measuring distance |
3cm~5cm
|
|
Measuring range
|
32.0℃~42.9℃
89.6℉~109.2℉
|
|
Resolution
|
0.1℃/℉
|
|
Power supply
|
AAA battery *2
(alkaline)
|
|
Low battery prompt
|
2.5±0.2V
|
|
Memory function
|
32groups memory
|
|
Temperature unit
|
℃,℉
|
|
Product size
|
161×90.5×45.5MM
|
|
Use period
|
5 years
|
|
Working conditions
|
10℃~ 40℃(50℉~ 104℉),RH≤93%,70kPa~ 106kPa
|
|
Storage conditions
|
-20℃~ 55℃(-4℉~ 131℉),RH≤93%,50kPa~ 106kPa
|
|
Measuring area
|
Forehead
|
|
Measuring method
|
Non-contact
|
| Measurement accuracy |
±0.2℃(35.0℃~42℃)
±0.3℃(<35℃or >42℃)
|
|
Power consumption
|
Off state≤90uW
Working state≤90uW
|
|
Display
|
LCD
|
|
Automatic shutdown
|
10S
|
|
Product weight
|
94g(without battery)
|
|
Production date
|
see outer box
|
1. Add or subtract memory key: short press to query the measurement record, automatically record 32 sets of test data, and automatically delete the previous record if more than 32 sets are exceeded, and always retain the last 32 sets of data;
2. Menu key: short press to switch between Fahrenheit and Celsius;
3. Temperature measurement button: short press to measure the temperature, and the LCD will display the temperature value in the current mode;
4. Body temperature mode (Body), the screen will display three colors of backlight. As shown in the figure below, LO is displayed below 32 degrees, and HI is displayed above 42 degrees. The backlight of Surface mode is only green;
1, Temperature measurement button
2, Menu key
3, Temperature memory plus key
4, Temperature memory minus sign key
5, Temperature measurement mode switch button
6, LCD display
7, Plastic shell
8, Battery box
1. Add or subtract memory key: short press to query the measurement record, automatically record 32 sets of test data, and automatically delete the previous record if more than 32 sets are exceeded, and always retain the last 32 sets of data;
2. Menu key: short press to switch between Fahrenheit and Celsius;
3. Temperature measurement button: short press to measure the temperature, and the LCD will display the temperature value in the current mode;
4. Body temperature mode (Body), the screen will display three colors of backlight. As shown in the figure below, LO is displayed below 32 degrees, and HI is displayed above 42 degrees. The backlight of Surface mode is only green;
